| 起源の場所: | 中国 |
| ブランド名: | SIMO BLOWER |
| 証明: | CE |
| モデル番号: | 7-26 |

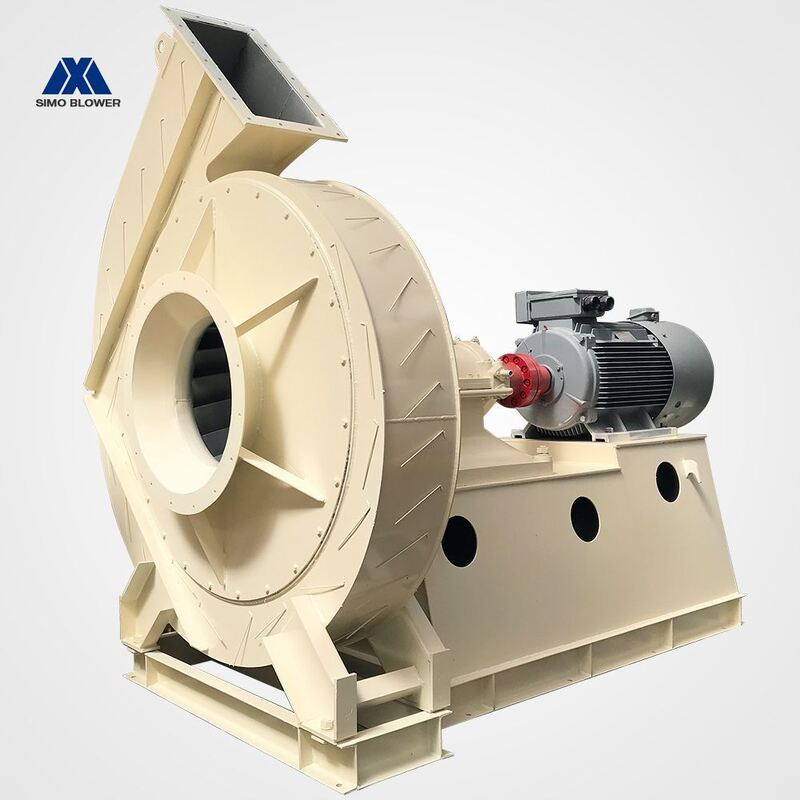

The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 89.8%.
It belongs to small flow and medium pressure series. It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
| Series no. | 7-08series | Feature selection |
|---|---|---|
| Performance | Impeller diameter | 400-3500mm |
| Rotation speed | ≤1450rpm | |
| Pressure range | 2144-13067Pa | |
| Flow range | 2196-479182m³/h | |
| Structure | Blade type | Backward, Straight, Aerofoil type |
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | |
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified) | |
| Cooling method | Air cooling, Water cooling, Oil cooling (Can be specified) | |
| Driven mode | Direct driven, Coupling driven, Belt driven (Can be specified) | |
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250ºC | Customer request |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc (Can be specified) |
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified) | |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified) | |
| Main shaft | High strength carbon steel, Alloy structural steel (Can be specified) | |
| Bearing | ZWZ, SKF, FAG, NSK (Can be specified) | |
| Bearing housing | Cast iron | |
| Foundation bolts | GB799-1988 | |
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | |
