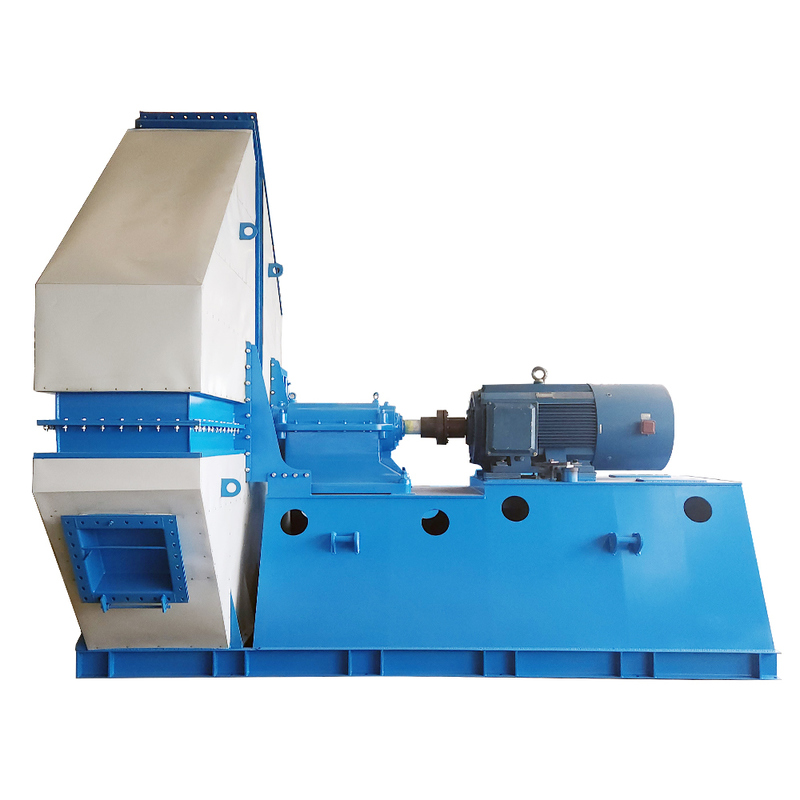

High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Name: High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO ブロワー 2XTF5
Availability: InStock

製品詳細:

起源の場所:	中国
ブランド名:	SIMO BLOWER
証明:	CE/ISO9001/ISO45001
モデル番号:	SIMO ブロワー 2XTF5

詳細情報

起源の場所:

中国

ブランド名:

SIMO BLOWER

証明:

CE/ISO9001/ISO45001

モデル番号:

SIMO ブロワー 2XTF5

製品名:

高効率遠心ファン

モーター:

シーメンス/abb/あなたの需要による

取り付け:

自立

電圧:

380V/415V/440V/660V/6KV/10KV

カスタマイズされたサポート:

ODM OEM OBM

提供されるアフターセールスサービス:

フィールドインストール、試運転、トレーニング

保証:

1年

ハイライト:

High Light

ハイライト:

industrial centrifugal blower fan

high efficiency metallurgy fan

China made centrifugal blower

Trading Information

最小注文数量:

≥1セット

価格:

$500-1,00000.00/set

パッケージの詳細:

1.標準輸出木製ケース2.スチールパレット防水布パッケージ3.要件を満たすためのその他のパッケージ

受渡し時間:

35days（交渉中）

支払条件:

L/C、T/T、D/P

供給の能力:

300セット30日

製品の説明

High Efficiency Metallurgy Plant Using Industrial Centrifugal Blower Fan China Made

Product Features

Capable of outputting higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
Fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Bearing housing reserved for temperature and vibration sensor mounting positions, convenient for installing fan operation monitoring devices.
Uses liquid lubricant - no need to open bearing housing to replace and fill oil. Observation window provided for easy monitoring of lubricating oil quality and quantity.
Bearing housing uses labyrinth mechanical seal with unique leak-proof oil design, vent hole at top, and sealant on joint, completely eliminating oil leakage possibility.
Impeller annealed to completely eliminate internal stress from welding, preventing creep and cracks.
Impeller subjected to high standard dynamic balance correction to ensure stable fan operation.
All products tested for running and vibration values after production for reliable operation.

Product Parameters

Technical specifications:

Series no.	5-12 series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m3/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI, DWDI, Overhung type
	Lubrication method	Oil bath, grease lubrication, lubrication oil station (can be specified)
Cooling method	Air cooling, Water cooling, Oil cooling (can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (can be specified)
Gas composition	Gas temperature	Normal, Customer request, ≥250ºC
Gas composition	Gas characteristic	Clean gas, Corrosive gas, Particulate dust, High temperature gas, Flammable/explosive gas

If you have requirements for our products, please provide your parameter information and our technical engineers will offer professional fan solutions.
